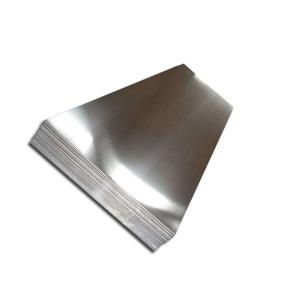

ASTM B209 5454 48 x 96 Aluminum Alloy Sheet Used for Petroleum Tank Trailer
5454 Aluminum Alloy is an alloy in the wrought aluminum-magnesium family. It is often used in parts
that require complex forming and bending, such as heads and partitions of oil tankers
The use of aluminum plate for oil tank truck
Aluminum alloy 5454,5754,5052,5083,5182 is widely used for the tank cylinder all over the world.
We produce 5052, 5454, 6061, 3003 aluminum sheet for Mexico customers, they use these material
to produce their tank trailer, 5454 is for the tank body, 5052 is for the head and bafflex, 6061 is for
the pipe ending to tie with valves with screws, 3003 is for the ladder to the access hole etc.
5454 Aluminum Alloy Advantages for tank trailer
• High strength: 5454 aluminum plate has high strength and can withstand mechanical stress and impact load.
• Good corrosion resistance: 5454 aluminum plate can resist the corrosion of common fuel and oil, prolonging
the service life of the tanker.
• Weldability: 5454 aluminum plate has good welding performance and can be reliably connected with
other materials.
Key properties
| 5454 Aluminum Mechanical Properties |
| Alloy & Temper | Thickness | Tensile Strengths – ksi |
| ULTIMATE | YIELD | Elongation % min in 2in or 4D |
| Min | Max | Min | Max |
| 5454-H32 | .013-.019 | 31 | 37 | 25 | 25 | 5 |
| .020-.031 | 31 | 37 | 25 | 25 | 6 |
| .032-.050 | 31 | 37 | 25 | 25 | 8 |
| .051-.113 | 31 | 37 | 25 | 25 | 10 |
| .114-.161 | 31 | 37 | 25 | 25 | 12 |
| .162-.249 | 31 | 37 | 25 | 25 | 14 |
| .250-.499 | 31 | 37 | 25 | 25 | 16 |
Company Advantages
♦ The final product quality is mainly based on slab quality.The advanced equipment and optimized process are
adopted to improve the quality of Aluminium alloy slab which can guarantee Aluminium alloy products at high
performance. All the melting and holding furnaces are supplied by GAUTSCHI Switzerland Company.
♦ 1+1+4 hot rolling mill and 1+5 hot rolling mills from SMS Group Germany.All the hot finishing rolling mills
adopt the CVC flatness control technology, which can produce hot-rolled strips and coils with ideal flatness and
good shaping in the world.
♦ 6 sets of cold rolling mill (4 sets of single-stand mill and 2 sets of three-stand tandem mill) from SMS Group
Germany. All these mills are applied with SMS patent 6 High CVC technology and are the most advanced cold
rolling mills in the world currently.
Packages & Transportation
We use the dust proof kraft paper packages with wood pallet, it has the water proof plastic layer inside,
2 labels on the surface of every package, and steel strip with the lock to pack it.
Oversize width, we use platform flat container (FR Container) for the transportation..
