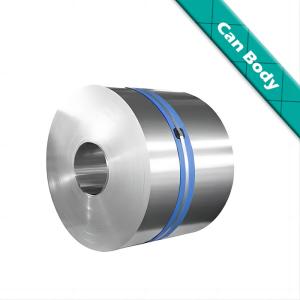

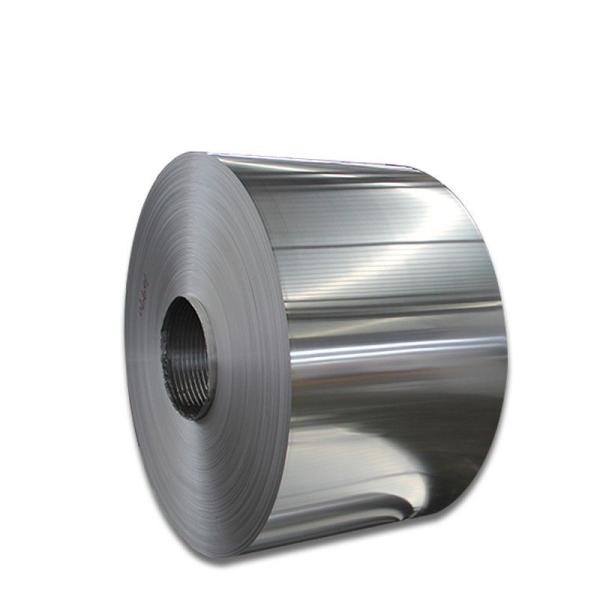

Lightweight 3104 H19 Aluminum Alloy Coil For Beverage Cans
3104 aluminum alloy belongs to the Al-Mn series, offering excellent formability, moderate
strength, and good corrosion resistance. lt is a primary material for manufacturing aluminum
beverage cans, widely used for beers, sodas, and juices. Its strength and corrosion resistance
ensure beverage freshness and safety,while the lightweight nature of aluminum contributes to
transportation efficiency.
Mechanical Properties
(Common Tempers)
| Temper | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Typical Applications |
| O | 150-180 | 60-80 | 15-20 | Deep-drawing blanks |
| H19 | 270-310 | 240-270 | 2-5 | Beverage can bodies (high hardness) |
| H24 | 220-250 | 180-200 | 8-12 | Can lids, packaging containers |
| H34 | 240-270 | 200-220 | 6-10 | Pressure vessels, industrial stampings |
Primary Applications
• Packaging Industry (Core Use)
Beverage can bodies (>70% of global 3104 consumption) :
Requires h19 temper for high strength and thin gauge (0.20-0.28mm).
Replaces traditional 3004 alloy
Can lids/bottle caps: h24 temper balances formability and sealing performance.
• Industrial Stampings
Battery casings, EMI shielding (h34 temper for dimensional stability).
• Architectural Decoration
Ceiling panels, curtain wall linings (can be anodized or painted).
We have 3104 Aluminum coil sample in our warehouse.
| Alloy/Temper | Size (mm) | Description |
| 6016-F | 8X2608xC | 26.5ton the Heaviest Hot-Rolled Coil |
| 6061-F | 1.5x1000xC | the Thinest Hot-Rolled Coil |
| 3104-H19 | 0.265x1640xC | 3104 Can Body Material Coil |
| 2024-T451 | 2.0x1850xC | 2024 Aluminum Alloy for Aviation Application |
| 5454-H32 | 8x2800xC | 2800mm the Widest Hot-Rolled Coil |
| 3004-H24 | 0.7x2650xC | 2650mm super Wide Cold-Rolled Coil |
Our Company Product Range
| Product | Thickness (mm) | Width (mm) | Length (mm) |
| Thick plate | 6～260 | 800～4,300 | 1000～38,000 |
| Thin sheet | 0.2～6 | 1000～2,800 | 1000～12,000 |
| Hot rolled coil | 1.5～12 | 1050～2,900 | ～ |
| Cold rolled coil | Min0.1 | 1000～2,650 | ～ |
Company Advantages
We use the Wolrd Advanced Equipments for your Aluminium Alloy Material
• All the melting and holding furnaces are supplied by GAUTSCHI (Switzerland) Company.
they improve the quality of Aluminum alloy slab which can guarantee Aluminium alloy
products with high-performance.
• 1+1+4 hot rolling mills (1 Reversible Roughing Mill +1 Finishing Mill + 4 Tandem Finishing Mills)
We import these equipments from SMS Group (Germany). All the hot finishing rolling mills
adopt the CVC flatness control technology, which can produce hot rolled coils and plates with
ideal flatness.
| Code | Name | Brand |
| a | aluminum ignot melting furnace | GAUTSCHI (Switzerland) |
| b | 2800mm width single stand cold rolling mill | SMS Group (Germany) |
| c | 4 continuous hot rolling mills | SMS Group (Germany) |
| d | heavy crop and dividing shear | SMS Group (Germany) |
| e | coil material annealing furnace | SMS Group (Germany) |
| f | all automatic three-dimensional elevated warehouse | Dematic (USA) |
