Corrosion Resistance EN AW 5083 H321 Aluminium Plate For Shipbuildings
5083 aluminium alloy sheet belong to Al-Mg series alloy. It is the highest strength corrosion-resistant alloy
among practical non-heat-treated alloys. 5083 aluminium plate has good resistance to seawater and low
temperature characteristics. So, 5083 aluminium plate has becomethe most suitable choice for marine
grade aluminium alloy.
the Features of 5083 Alloy
5083 aluminium alloy is well known for their exceptional performance in the most extreme environment.
The alloy show high resistance to both seawater and chemical environments.
This alloy product should not be used in the temperatures above 65°C .
Physical properties for 5083 aluminum alloy
| Property | Value |
| Density | 2650 kg/m3 |
| Melting Point | 570°C |
| Modulus of Elasticity | 72 GPa |
| Electrical Resistivity | 0.58 x 10-6 Ω.m |
| Thermal Conductivity | 121 W/m.K |
| Thermal Expansion | 25 x 10-6/K |
the Applications of 5083 Alloy

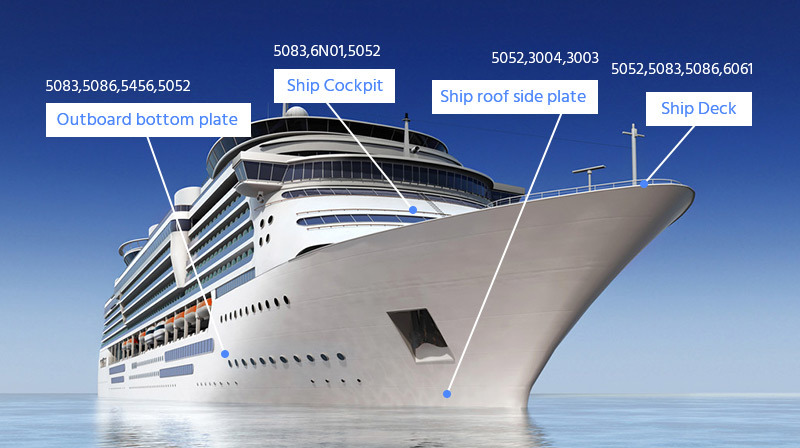

Because of its strength and corrosion resistant properties, 5083 aluminium are widely used in the ship
building industry.It is also preferably used in the following industries such as: Marine applications,
Transportation, Cars etc.
♦ Tip Truck Bodies ♦ Mine Skips and Cages ♦ Vehicle Bodies
Our factory own the World-level Advanced Equipments
Full sets of imported vertical intelligent storage and logistic management systems, and finishing lines.
• All the melting and holding furnaces are supplied by GAUTSCHI (Switzerland) Company.
The equipments are famous with its high efficiency, energy conservation, environmental protection and
intelligent control, and is widely used in the smelting, heat preservation and casting of aluminum and
aluminium alloys. They are preferred equipments for Aluminium alloy of shipbuildings, automobiles and
aerospace industries.
• 1+1+4 hot rolling mills (1 Reversible Roughing Mill +1 Finishing Mill + 4 Tandem Finishing Mills )
They are from SMS Group (Germany) .The characteristics of these equipments are high efficiency, high
precision, well-adapted, energy saving and consumption reduction. They are the core equipments of
modern aluminium material processing, they are suitable for large-scale, high precision aluminium
material production, it is widely used in the shipbuildings, aerospace etc fields.
| Code | Name | Brand |
| A | aluminum ignot melting furnace | GAUTSCHI (Switzerland) |
| B | 4 continuous hot rolling mills | SMS Group (Germany) |
| C | 2800mm width single stand cold rolling mill | SMS Group (Germany) |
| D | all automatic three-dimensional elevated warehouse | Dematic (USA) |
