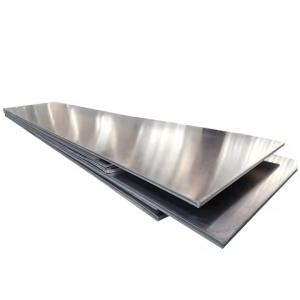

5000 Grade 5754 Plain Aluminum Plate Mill Finish Aluminum Sheet For Industry Application
Aluminum alloy 5754 was often designated “AlMg3”, it is an aluminum alloy with magnesium
as the primary alloying element. It has good formability when in the fully soft, annealed temper
and can be work-hardened to very high strength levels. It is sea water resistant and has an
average strength, high corrosion resistance and good for welding.
the Advantages of 5754 Aluminum Alloy
♦ Excellent Weldability
The alloy has excellent weldability and improved workability. 5754 have applications
in market sectors such as marine, oil & gas, Welded chemical and nuclear structures.
♦ Corrosion Resistance
5754 aluminum alloy is a higher strength material than 5251 and offers d good workability.
Its key characteristics is the alloy ability to provide great resistance to both seawater and
industrial chemical corrosion.
the Typical Application of Different Thickness
1. Thin Plate (0.2mm–6.0mm)
0.2–1.0mm: Ultra-thin sheets for precision stamping or packaging.
1.0–3.0mm: Commonly used in automotive interior, ship bulkhead.
3.0–6.0mm: Structural component, fuel tank, and container panel.
2. Medium-Thick Plate (6.0–25mm)
6.0–12mm: Ship deck, chemical equipment lining, truck floor panel.
12–25mm: Heavy transport equipment, bridge structures, pressure vessel.
3. Thick Plate (Above 25mm)
Primarily used in specialized industries, such as large ship structures and heavy
machinery support.
the Production Range of Our Factory

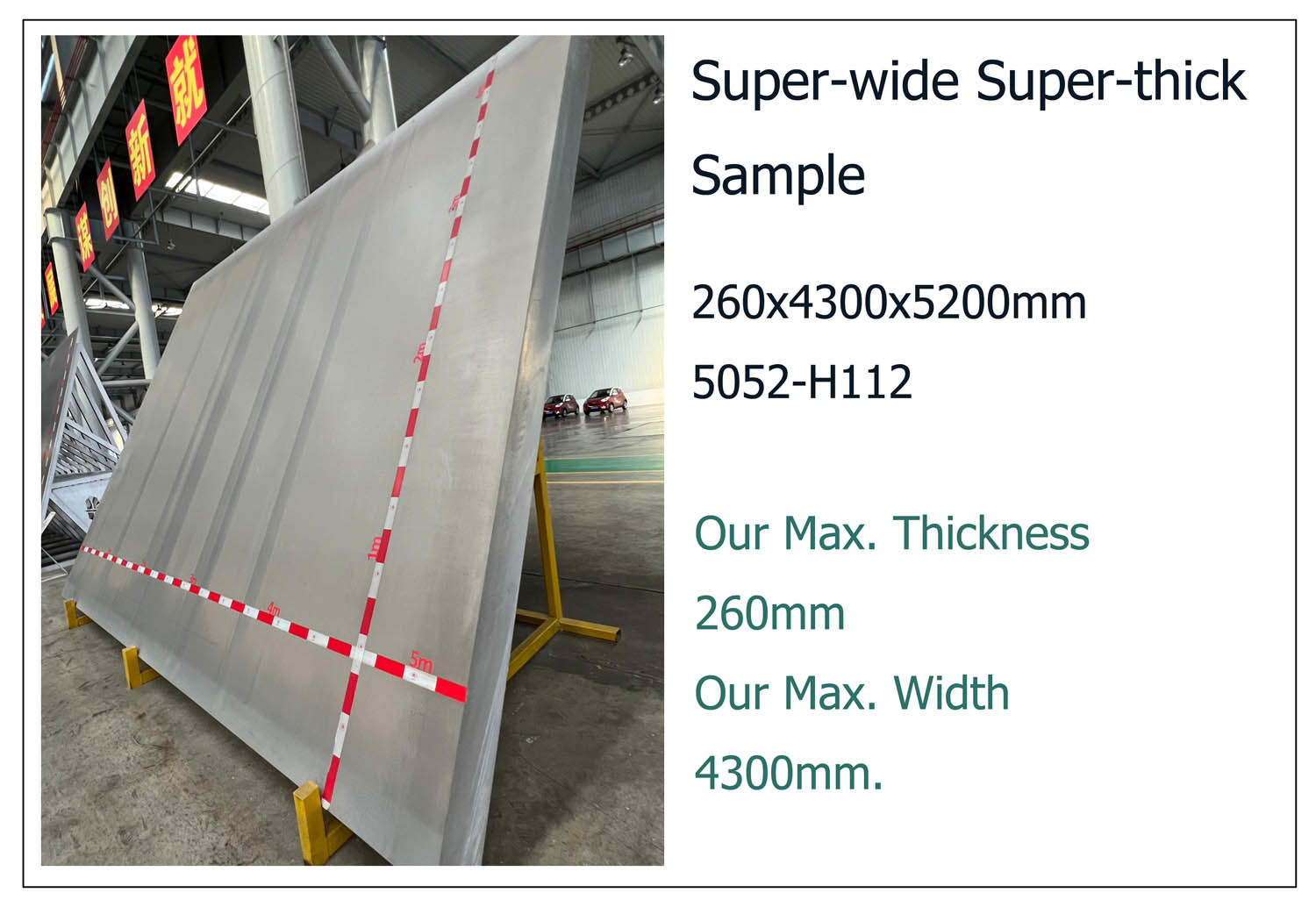

| Product | Thickness (mm) | Width (mm) | Length (mm) |
| Thick Plate | 6～260 | 800～4300 | 1000～38000 |
| Thin Plate | 0.2～6 | 1000～2800 | 1000～12000 |
the Equipments Advantages of our Factory
• All the melting and holding furnaces are supplied by GAUTSCHI (Switzerland) Company,
GAUTSCHI is a global leading manufacturer of melting furnaces in the aluminum processing
industry, the equipment is famous with its high efficiency, energy conservation, environmental
protection and intelligent control , and it is widely used in the smelting, heat preservation and
casting of aluminum and aluminum alloys.
• 1+1+4 hot rolling mills (1 Reversible Roughing Mill +1 Finishing Mill + 4 Tandem Finishing Mills)
These machines are from SMS Group (Germany). All the hot finishing rolling mills adopt
the CVC flatness control technology, which can produce hot-rolled coils and plates with
ideal flatness. The characteristics of these equipments are high efficiency, high precision,
well-adapted, energy saving and consumption reduction. They are the core equipments
of modern aluminum material processing, and suitable for large-scale, high-precision alu
-minum material production, and widely used in the automobile, packaging, aerospace etc
fields
