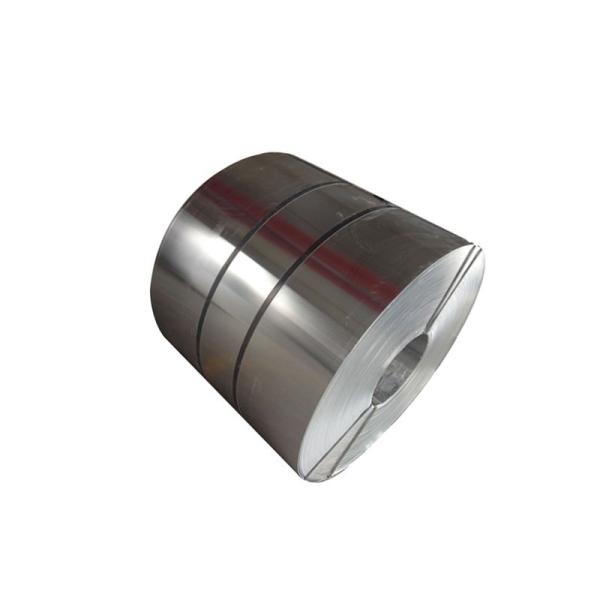

Corrosion Resistance ASTM B209 3104 Aluminum Coils For Beverage Cans
3104 aluminum alloy coils belongs to the Al-Mn series, offering excellent formability, moderate
strength, and great corrosion resistance. lt is a primary material for manufacturing aluminum
beverage cans, widely used for juices,beers, and sodas. Its strength and corrosion resistance
ensure beverage freshness and safety, the lightweight nature of aluminum contributes to
transportation efficiency at the same time.
Mechanical Properties
(Common Tempers)
| Temper | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Typical Applications |
| O | 150-180 | 60-80 | 15-20 | Deep-drawing blanks |

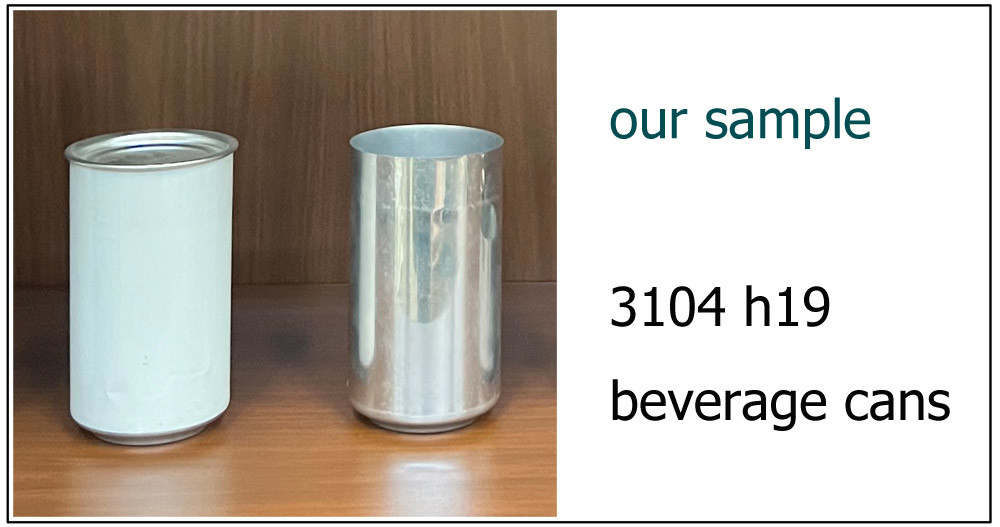

| H19 | 270-310 | 240-270 | 2-5 | Beverage can bodies (high hardness) |
| H24 | 220-250 | 180-200 | 8-12 | Can lids, packaging containers |
Primary Applications
• Packaging Industry
Beverage can body (>70% of global 3104 consumption) :
Requires H19 temper for high strength and thin gauge (0.20-0.28mm).
Replaces traditional 3004 alloy material.
Can lid/bottle cap: H24 temper balance formability and sealing performance.
• Industrial Stamping
Battery casing, EMI shielding (H34 temper for dimensional stability).
• Architectural Decoration
Ceiling panel, curtain wall lining
Our Company Product Range
| Product | Thickness (mm) | Width (mm) | Length (mm) |
| Thick sheet | 6～260 | 800～4,300 | 1000～38,000 |
| Thin sheet | 0.2～6 | 1000～2,800 | 1000～12,000 |
| Hot rolled coil | 2.0～12 | 1050～2,900 | ～ |
| Cold rolled coil | Min0.1 | 1000～2,650 | ～ |
Company Advantages
We use the Wolrd Advanced Equipments for your Aluminum Alloy Coil
• All the melting and holding furnaces are supplied by GAUTSCHI (Switzerland) Company.
they improve the quality of Aluminum alloy slab which can guarantee Aluminum alloy
products with high-performance.
• 1+1+4 hot rolling mills (1 Reversible Roughing Mill +1 Finishing Mill + 4 Tandem Finishing Mills)
We import these equipments from SMS Group (Germany). All the hot finishing rolling mills
adopt the CVC flatness control technology, which can produce hot-rolledcoils and sheets with
ideal flatness.
| Code | Name | Brand |
| a | aluminum ignot melting furnace | GAUTSCHI (Switzerland) |
| b | 2800mm width single stand cold rolling mill | SMS Group (Germany) |
| c | 4 continuous hot rolling mills | SMS Group (Germany) |
| d | heavy crop and dividing shear | SMS Group (Germany) |
| e | coil material annealing furnace | SMS Group (Germany) |
| f | all automatic three-dimensional elevated warehouse | Dematic (USA) |
