CGCC Coloured Galvanised Zinc Ppgi Galvanized Steel Iron Sheets Coil
Prepainted steel sheet can be used in advanced forming operations such as roll forming,
bending and deep drawing. It can be worked by cutting, roll forming, bending, folding and so on.
Our Factory
1)Company philosophy : “Making friends sincerely and developing with reputation” The quality
decides the market,and the attitude decides the development”.
2) 38 professionals and technical personnels, 60 domestic and international trade personnels.
2 industry-leading Gl production lines, 5 PPGI production lines , 1 pattern PPGI production line,
3) We implement the product quality control strictly,strive to reach the acme of perfection in every
process.It is responsible for the product and the customer and to provide the best quality product
for customers.
Solid Color
♦ Normally, we use standard Ral k7 card to match the color, also we support custom colors
by customer’ s sample.

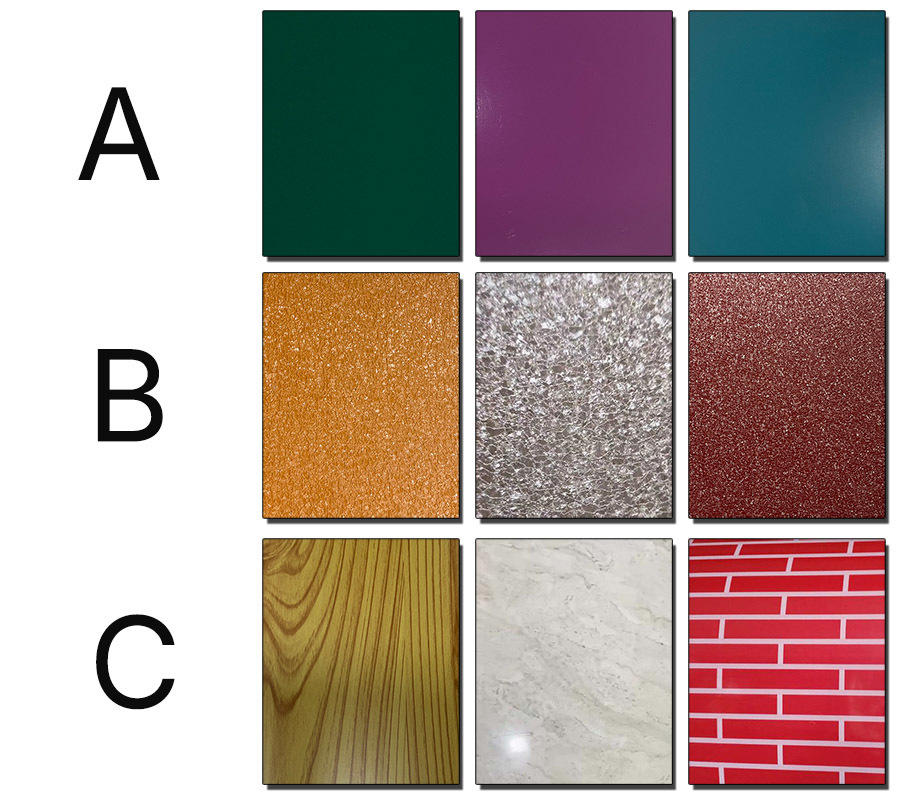

Product Classification
A: Solid color, single color, we confirm the color by Ral standard card.
B: Embossed PPGI, support wringkle,diamond,orange peel etc embossed surface.
C: Pattern PPGI, common pattern, wood grain, stone texture, brick texture etc.
Quality Control
1) Mechanical Properties Testing
room-temperature and high-temperature mechanical tests, Brinell hardness, HRC hardness,
Vickers hardness, micro-hardness, expansion, flattening, cupping, bending, compression.
2) Metallurgical & Corrosion Analysis
macrostructure analysis, fracture detection, conductivity/resistance, density, grain size, hydrogen
embrittlement, residual stress, dezincification corrosion, salt spray, annealing.
3) Dimensional & Surface Measurement
thickness, width, length, zinc coating quantity,paint adhesion,surface roughness etc.
Mainly Applications
1 Building and Construction
It is widely used for roofing sheet, wall cladding, ceiling, door, and shutter because
of its durability and various colors.
2 Home Appliances
Commonly applied to refrigerator panel, washing machine shell, air conditioner shell.
| Construction Material | roofing sheet | ceiling | sanwich panel |
| Transportation and Automotive | trunk lids and doors | fenders | fuel tank |
Basic Parameters for your reference
| Type of Substrate: | Hot Dipped Galvanized, Galvalume/Aluzinc |
| Thickness | 0.15 – 1.50 mm |
| Width: | 30mm – 1250mm |
| Coil Weight: | 2,5-8 Tons |
| Inner Diameter: | 508or 610mm |
| Zinc/Aluzinc Coating: | Z50-Z275G AZ40-AZ180 |
| Painting: | Top: 15 to 25 um (5 um + 12-20 um) |
| Back: 7 +/- 2 um |
| Steel Color Painting Types: | Polyester, PVDF, Special Coatings |
| Surface Treatments: | Protective Filmed or not |
| Forms: | Coils, Strips, Sheets (cut-to-length), Corrugated, Trapezoid |
Prepainted Steel Coil Advantages:
Strong corrosion resistance, 3 times that of galvanized steel sheet.
The density of 55% aluminum is smaller than the density of zinc. When the weight is the same
and the thickness of the plating layer is the same, the area of the galvalume steel sheet is 3%
or larger than that of the galvanized steel sheet.
Color coated steel sheet is made by chemical pretreatment, preliminary coating and fine coating,
the quality of the coating is more even, stable and ideal than single spraying or brushing on the
surface of formed metal.
