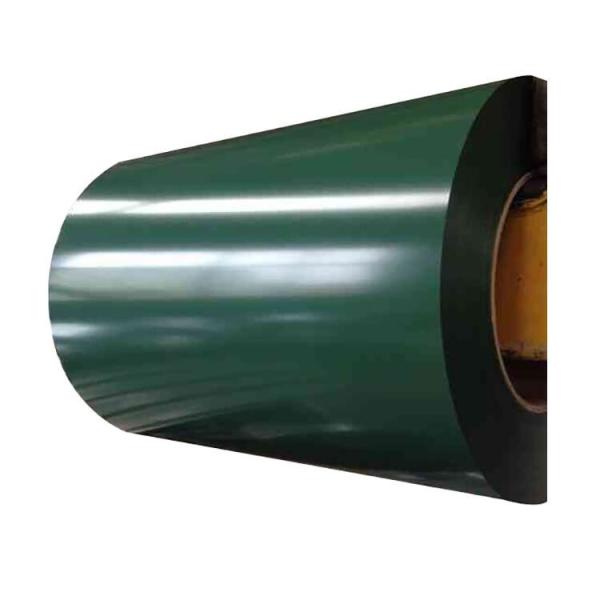

0.2-1.2mm Pre-Painted GI Steel Coil With Bright/Wrinkle/Matt Surface
Product Description

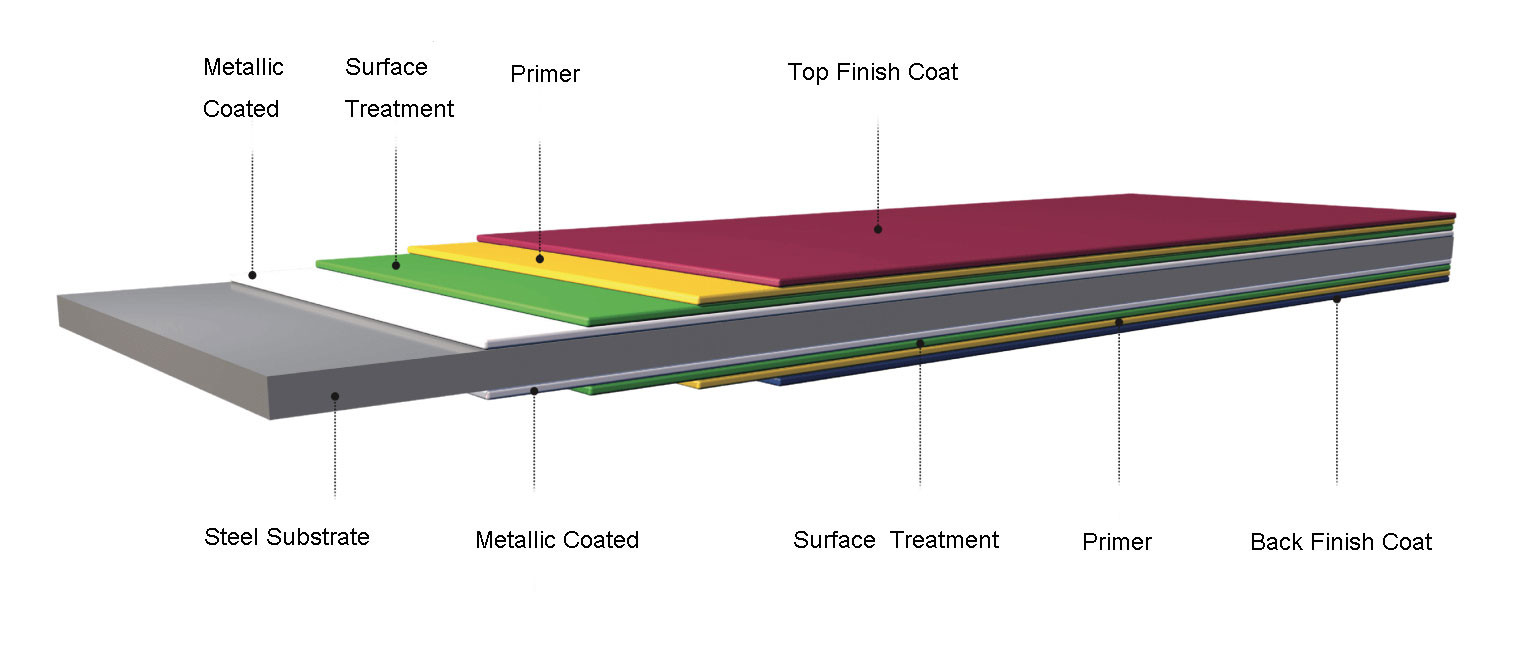

PPGI Coil, also known as pre-painted galvanized iron coils or color coated steel coils, are steel coils made with a galvanized base metal and coated with an organic paint layer to provide extra protection against corrosion. PPGI Coils are available in a variety of coating types, including Zinc Coated and Film, and are made from Cold Rolled Steel, Hot Dipped Galvanized Steel,electro-galvanized Steel and Hot Dipped Galvalume Steel. The surface of PPGI Coils can be treated with different kinds of coatings to provide different levels and types of protection. PPGI Coils are available in various lengths and can be customized according to the customer's needs. PPGI Coils are widely used in the construction, automotive, and manufacturing industries, due to their superior durability and corrosion resistance. PPGI Coils are a cost-effective solution for protecting metal surfaces and provide an aesthetically pleasing look to any building or structure.
Features
- Product Name: PPGI Coil
- Base Metal: Cold Rolled Steel, Hot Dipped Galvanized Steel, Electro-galvanized Steel And Hot Dipped Galvalume Steel
- Material: Galvanized Steel

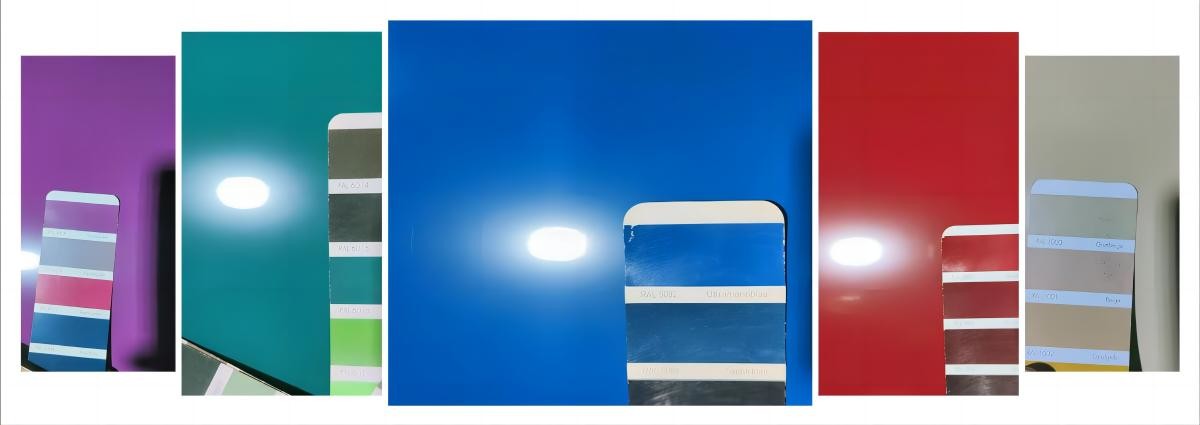

- Color: Ral Standard Color
- Standard: ASTM A755/CGCC/EN 10346
- Width: 600-1250mm
- Keywords: PPGL Steel Coil, PPGI Galvanized Steel Coil, PPGL Steel Coil
Technical Parameters
| Property | Value |
| Thickness | 0.2-1.2mm |
| Elongation | 18-25% |
| Coating | Zinc Coated And Film |
| Material | Galvanized Steel |
| Standard | ASTM A755/CGCC/EN 10346 |
| Coating Thickness | 20-25μm |
| Surface Treatment | Coated |
| Yield Strength | 180-400MPa |
| Tensile Strength | 270-500MPa |
| Color | Ral Standard Color |
Applications
JERO STEEL's PPGI Coil is a pre-painted, coated steel product with certification of ISO9001, SABER SONCAP, SNI, BIS and QM. It is constructed with cold rolled steel, hot dipped galvanized steel, electro-galvanized steel and hot dipped galvalume steel. It has a tensile strength of 270-500MPa and can be found with bright, wrinkle and matt surface finishes. It is used in many applications such as buildings, automobiles and electrical products.
JERO STEEL's PPGI Coil is constructed from premium quality cold rolled steel, hot dipped galvanized steel, electro-galvanized steel and hot dipped galvalume steel. It is designed to provide excellent resistance to corrosion and weathering. The surface finishes of bright, wrinkle and matt provide a unique look to the product. It has a superior tensile strength of 270-500MPa. It is certified by ISO9001, SABER SONCAP, SNI, BIS and QM.
JERO STEEL's PPGI Coil is suitable for many applications such as buildings, automobiles, electrical products and more. It is recognized for its excellent corrosion resistance, weathering resistance and superior tensile strength. It is available in bright, wrinkle and matt surface finishes, providing a unique look to the product. It is certified by ISO9001, SABER SONCAP, SNI, BIS and QM, ensuring the highest quality standard.
Customization
PPGI Coil
Introducing JERO STEEL PPGI Coil – galvanized steel coil from China with ISO9001, SABER SONCAP, SNI, BIS and QM certification. Our PPGI Coil offers superior surface finish with bright, wrinkle or matt finish and thickness ranging from 0.2 – 1.2mm. It is made from high-grade galvanized steel and coated with zinc for superior corrosion resistance. Coil weight ranges from 3-8ton.
Our PPGI Coil is perfect for various applications such as roofing, cladding, paneling and other construction needs. Get the most reliable PPGI coil from JERO STEEL today.
Packages and loading
3 layers of packing. Inside is craft paper, Middle is water plastic film and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve.
To prevent the rolling, tipping, jumping and sliding of the steel coil in the container four more common phenomena,
The reinforcement materials used are mainly wood strips, wood plugs, wire ropes and auxiliary equipment.
-
