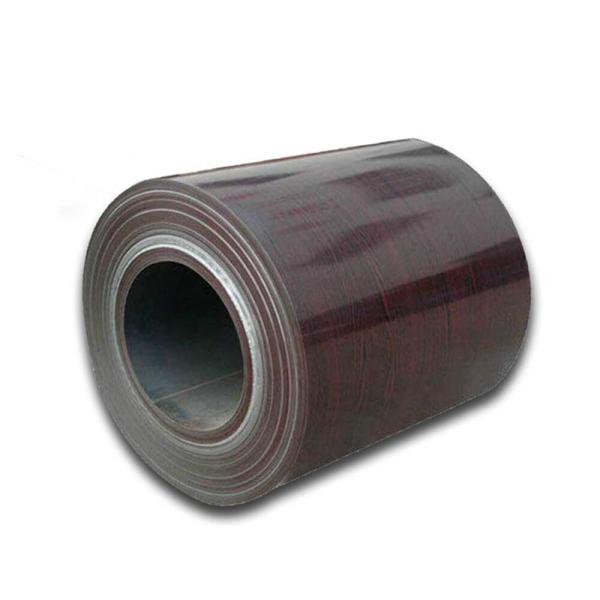

Roofing Color Coated Steel Coil With Thickness 0.12-2mm And Steel Material
Product Description:
The pre-painted steel sheet in coil is a product obtained by subjecting a hot-dipped galvanized steel sheet to a surface chemical treatment (coating).
The base metal for ppgi/ppgl consists of cold-rolled steel, hot-dipped galvanized steel, electro-galvanized steel and hot-dipped galvalume steel. The coating material can be selected from a range of options, such as polyester, silicon modified polyester, polyvinylidene fluoride, high-durability polyester, etc.
Features:
Prepainted steel sheet is composed of a steel core, metal coating, primer and top coat. Galvanized and Galvalume (Aluzinc) are typically used as substrates. Through pre-treatment, painting, baking and cooling, a protective film is created on its surface. As a result, the steel sheet possesses a number of characteristics, such as durability, corrosion resistance, and pleasant appearance.
In terms of application, Prepainted steel sheet is an ideal choice for a wide range of operations, including roll forming, bending, and deep drawing. It can easily be shaped and crafted using cutting, roll forming, bending, folding, and the like.
Technical Parameters:
| Property | Description |
| Zinc Coating | Z30-Z275GSM |
| Surface Structure | Big/Small/Zero/Regular Spangle |
| Material | Steel |
| Thickness | 0.12-2mm |
| Surface Treatment | Coated |
| Yield Strength | 195-420MPA |
| Back Coating | 5-7micron |
| Paint Type | PE/SMP/HDP/PVDF |
| Tensile Strength | 270-500MPA |
| Width | 25-1500mm |
Applications:
Buildings and Constructions
Workshop, agriculture warehouse, residential precast unit, corrugated roof, wall, rainwater drainage pipe, door, door case, light steel roof structure, folding screen, and ceiling are all important components in constructing buildings. Applications of elevator and stairway are also frequently seen.
Transportation
In transportation, both auto and train use interior decoration of materials like clapboard and container.
Electrical Application
For electrical application, washing machine, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, and refrigerator are commonly seen.
Customization:
JERO STEEL Color Coated Steel Coil
JERO STEEL is a leading brand of color coated steel coil in China. Our steel coils are certified with ISO9001, SABER, SONCAP, SNI, BIS, QM and are all fully compliant with ASTM A755/CGCC/EN 10346 standards. Our steel coils are available in a variety of widths (25-1500mm) and tensile strengths (270-500MPA). Our top coating is 5+20micron.
Our ppgi colour coated sheets, color steel coils and color steel coils are of the highest quality and provide outstanding strength and durability. With our superior color coating techniques, our steel coils are perfect for a variety of applications.
Packing and Shipping:
Packaging and Shipping for Color Coated Steel Coil:
The steel coils are securely packaged in a bundle, wrapped with plastic or kraft paper, and placed on a wooden pallet to prevent damage during shipping.
The bundles are then shipped to the customer's designated address via truck, train, or ocean freight.
